Types of Socket-weld
Fittings

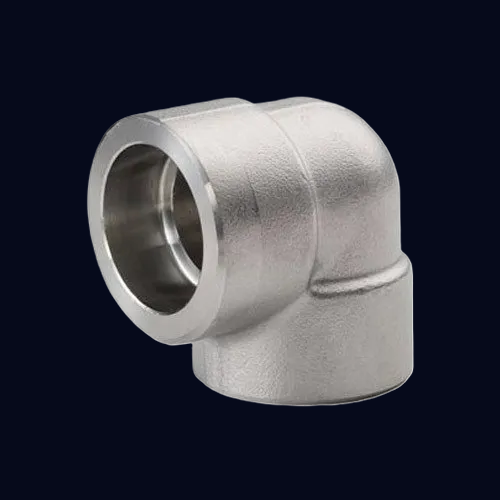

90 Degree Elbow
SPECIFICATION:
Size: 1/4″ to 4″
Type : Equal / Unequal
Pressure Class: 3000#, 6000#, 9000#
End Connection: Socket Weld

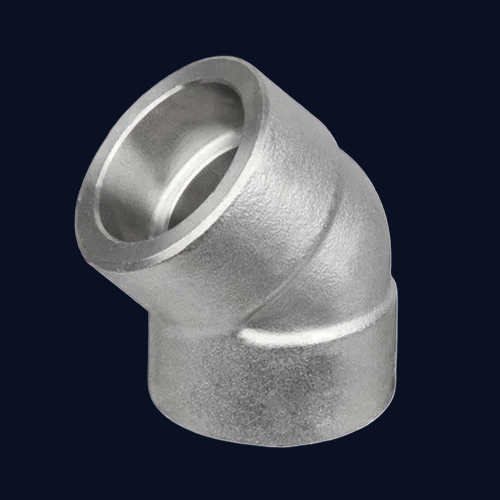

45 Degree Elbow
SPECIFICATION:
Size: 1/4″ to 4″
Pressure Class: 3000#, 6000#, 9000#
End Connection: Socket Weld

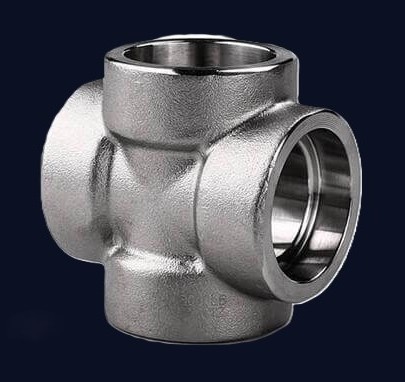

Cross
SPECIFICATION:
Size: 1/4″ to 4″
Type : Equal / Unequal
Pressure Class: 3000#, 6000#, 9000#
End Connection: Socket Weld

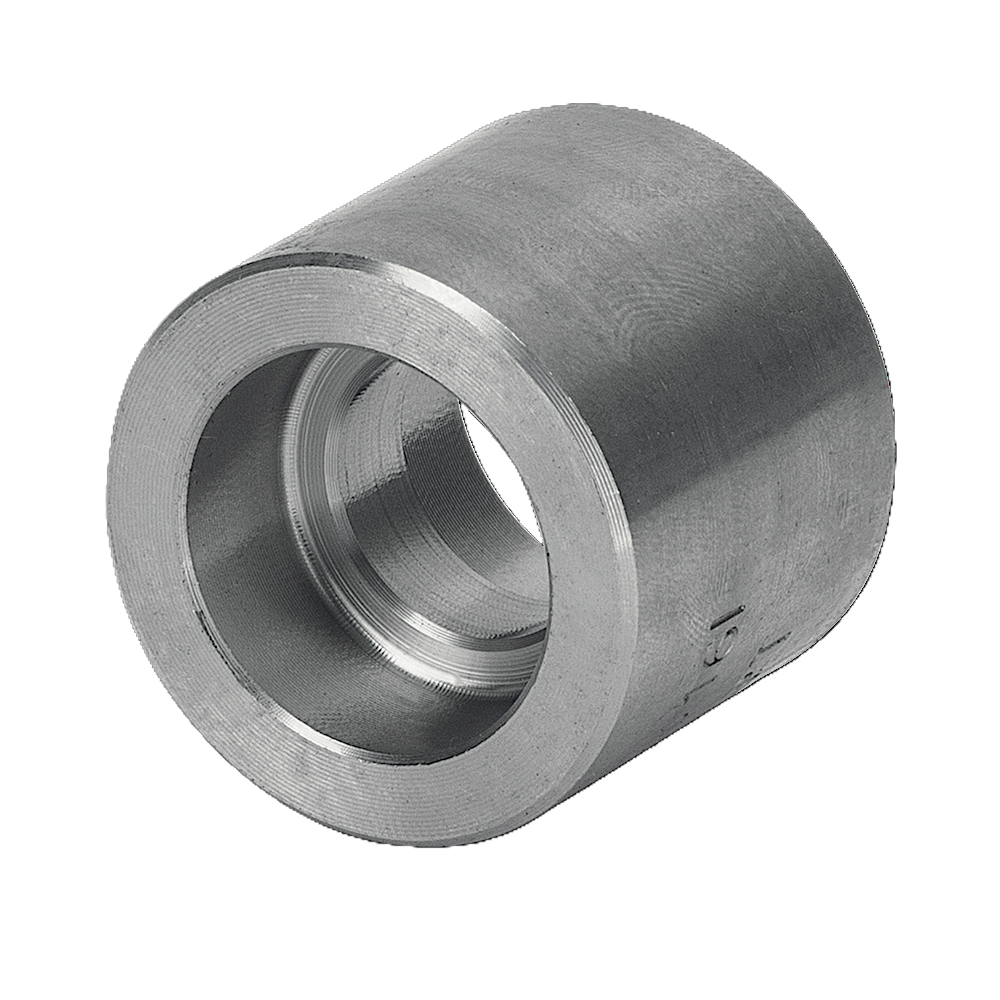

Coupling
SPECIFICATION:
Size: 1/4″ to 4″
Type : Half, Full, Reducing
Pressure Class: 3000#, 6000#, 9000#
End Type: Socket Weld
Union
SPECIFICATION:
Size: 1/4″ to 4″
Type : Equal / Unequal
Standard: BS – 3799
Pressure Class: 3000#, 6000#, 9000#
End Connection: Socket Weld

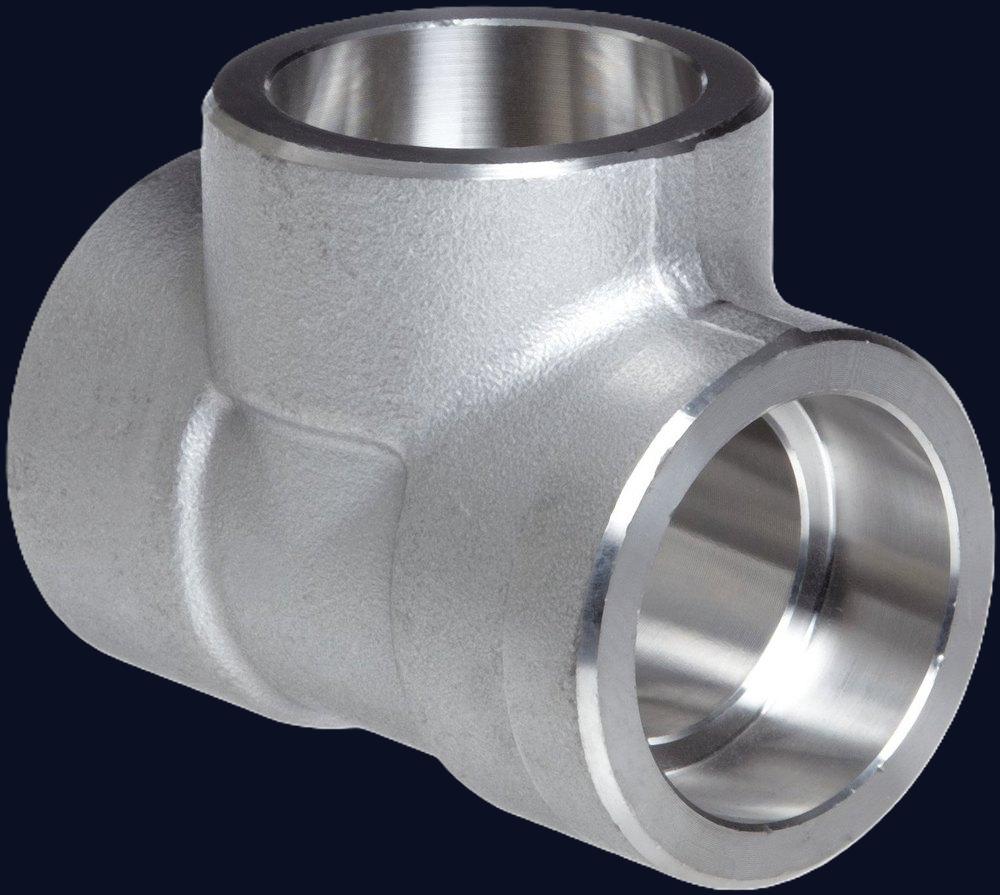

Tee
SPECIFICATION:
Size: 1/4″ to 4″
Type : Equal / Unequal
Pressure Class: 3000#, 6000#, 9000#
End Connection: Socket Weld

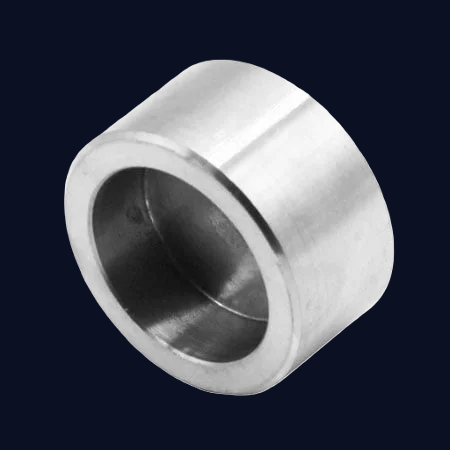

Cap
SPECIFICATION:
Size: 1/4″ to 4″
Pressure Class: 3000#, 6000#, 9000#
End Connection: Socket Weld
Socketweld Material
Standards
Design: As Per ASTM B16.11
Carbon Steel
- ASTM A105
- ASTM A105 LF2
Alloy Steel
- A182 F5 / F9
- A182 F11 / F12
- A182 F22 / F51 / F91
Stainless Steel
- A182 F304 / 304L / 304H
- A182 F316 / 316L / 316H
- A182 F321, 316Ti
