Types of Buttweld

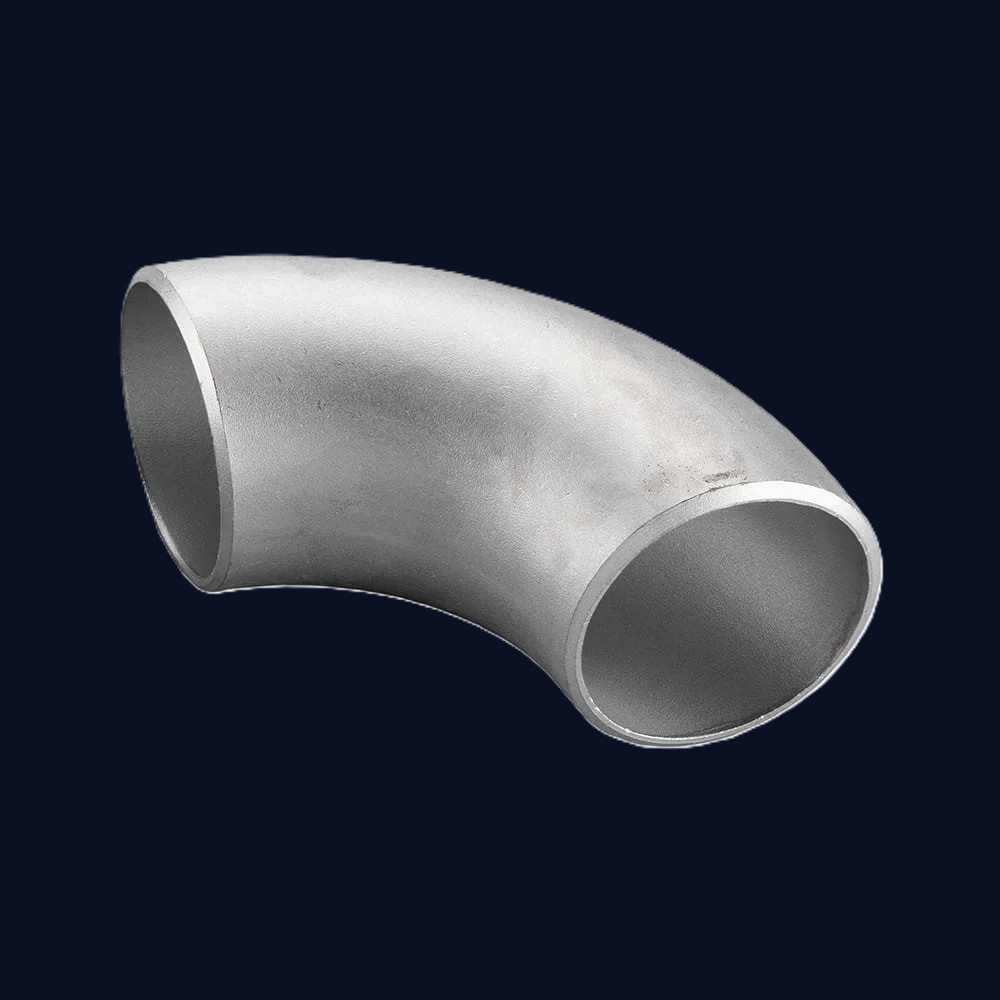

Elbow
SPECIFICATION:
Size: 1/2″ to 24″
Type : 90DEG LR ELBOW, 90DEG SR ELBOW, 45DEG ELBOW, 180DEG LR ELBOW,180DEG SR ELBOW.
SCHEDULE: SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
End Connection: BUTT-WELD

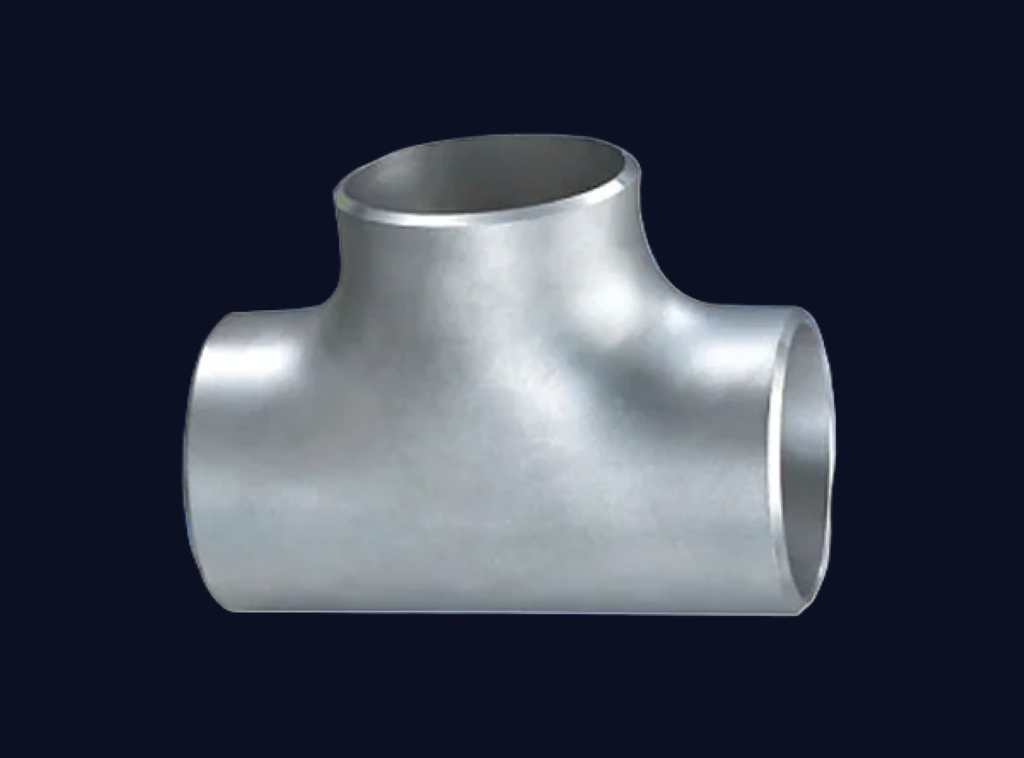

Tee
SPECIFICATION:
Size: 1/2″ to 24″
Type : 90DEG LR ELBOW, 90DEG SR ELBOW, 45DEG ELBOW, 180DEG LR ELBOW,180DEG SR ELBOW.
SCHEDULE: SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
End Connection: BUTT-WELD

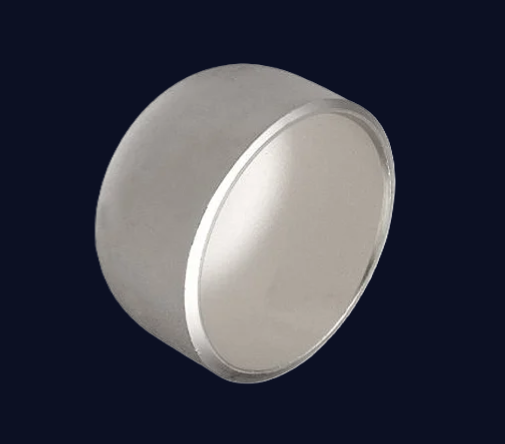

Endcap
(Raised Face / Flate Face)
SPECIFICATION:
Size: 1/2″ to 24″
Type : EQUAL CROSS, UNEQUAL CROSS
SCHEDULE: SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
End Connection: BUTT-WELD

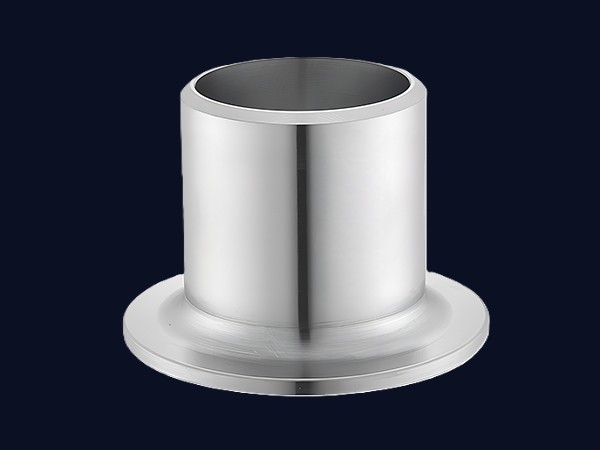

Stub End
(Raised Face / Flate Face)
SPECIFICATION:
Size: 1/2″ to 24″
Type : LONG-PATTERN STUBEND, SHORT-PATTERN STUBEND
SCHEDULE: SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
End Connection: BUTT-WELD

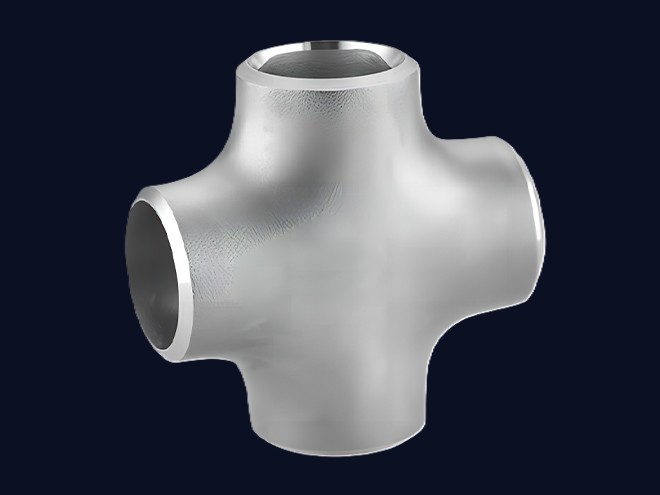

Cross
(Raised Face / Flate Face)
SPECIFICATION:
Size: 1/2″ to 24″
Type : EQUAL CROSS, UNEQUAL CROSS
SCHEDULE: SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
End Connection: BUTT-WELD
\

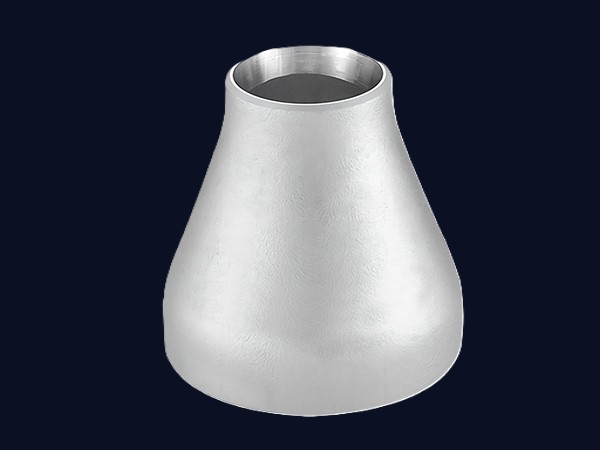

Reducer
(Raised Face / Flate Face)
SPECIFICATION:
Size: 1/2″ to 24″
Type : CONCENTRIC REDUCER, ECCENTRIC REDUCER
SCHEDULE: SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
End Connection: BUTT-WELD
Buttweld Material
Standards
Design:As Per ASTM B16.9
Carbon Steel
- ASTM A234 WPB
- A420 WPL6
- WPHY 42 / 46 / 52 / 60 / 70
Alloy Steel
- ASTM A234 WP5 / WP9 / WP11
- A234 WP22 / WP51
- A234 WP91
Stainless Steel
- ASTM A403 WP304 / WP304L
- A403 WP316 / WP316L
- A403 WP321 / WP347
